Kolektoriaus plokščio tvirtinimo vožtuvai

„Qingdao“ žvaigždės aparatas gamina įvairius impulsų pelenų valymo vožtuvus, įskaitant pažangius kolektoriaus plokščius laikiklio vožtuvus. „Qingdao Star“ mašina pagamintas impulsų vožtuvas sklandžiai veikia, efektyviai išvalo dulkes ir turi ilgą tarnavimo laiką, o tai yra svarbus mūsų įmonės, kuri prisideda prie aplinkos apsaugos, našumas. Pasirinkimas mus yra efektyvumo pasirinkimas. Mūsų inžinieriai gali suteikti klientams nepriekaištingą išankstinio pardavimo ir po pardavimo patarimą jūsų filtravimo sprendimams.

Siųsti užklausą

Prekės aprašymas

The Manifold Flat Mount Valves supplied by Qingdao Star Machine is specially designed for dust collectors, and its warranty period is set at one year.

The MM series submerged pulse jet valve can be directly installed on the air manifold, which can provide a strong air pulse for the filter bag and effectively remove particles.

This batch of valves is divided into two different categories:

The CA series is an integrated pilot pulse jet valve.

The RCA series is a pilot pulse jet valve used for remote operation

Both of these two series adopt right-angle thread and immersion design methods, and their connection size range expands from 15 millimeters to 76 millimeters (1/2 inch to 3 inches). A special type of turbocharging device is used in these systems. The working pressure range of these devices is between 0.3 and 8.6 bar. They can directly extract compressed air from the manifold, thereby enhancing aerodynamic characteristics and generating stronger air pulses.

Product drawing

Manifold Flat Mount Valves

Manifold Flat Mount Valve CA/RCA25MM

Manifold Flat Mount Valves

Manifold Flat Mount Valve CA/RCA40MM

Manifold Flat Mount Valves

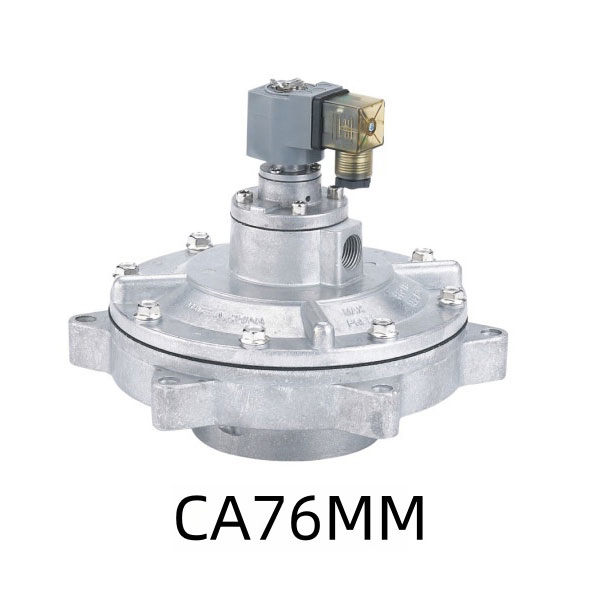

Manifold Flat Mount Valve CA/RCA76MM

Manifold Flat Mount Valves

Manifold Flat Mount Valve CA/RCA102MM

Order code:

Manifold Flat Mount Valves

The temperature range of the flanged valves depends on the chosen model and diaphragm:

Nitrile diaphragms: -40°C (-40°F) to 82°C (179.6°F)

Viton diaphragms: -29°C (-20.2°F) to 232°C (449.6°F)

Product Application

Manifold Flat Mount Valves are Ideal for:

Dust collector applications, especially designed for reverse pulse jet filter cleaning, encompassing bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters. Manifold Flat Mount Valve can improve the cleaning efficiency of baghouse dust collectors.
